Fabrication Flat Pattern

Mastering the art of fabrication layout is crucial for professionals in the industry, and our app is designed to streamline this process significantly. By providing detailed flat patterns for various shapes commonly used in fabrication, our tool helps to minimize fabrication time while boosting accuracy. Whether you're dealing with complex shapes or simple transitions, our app offers a comprehensive suite of options to meet your needs.

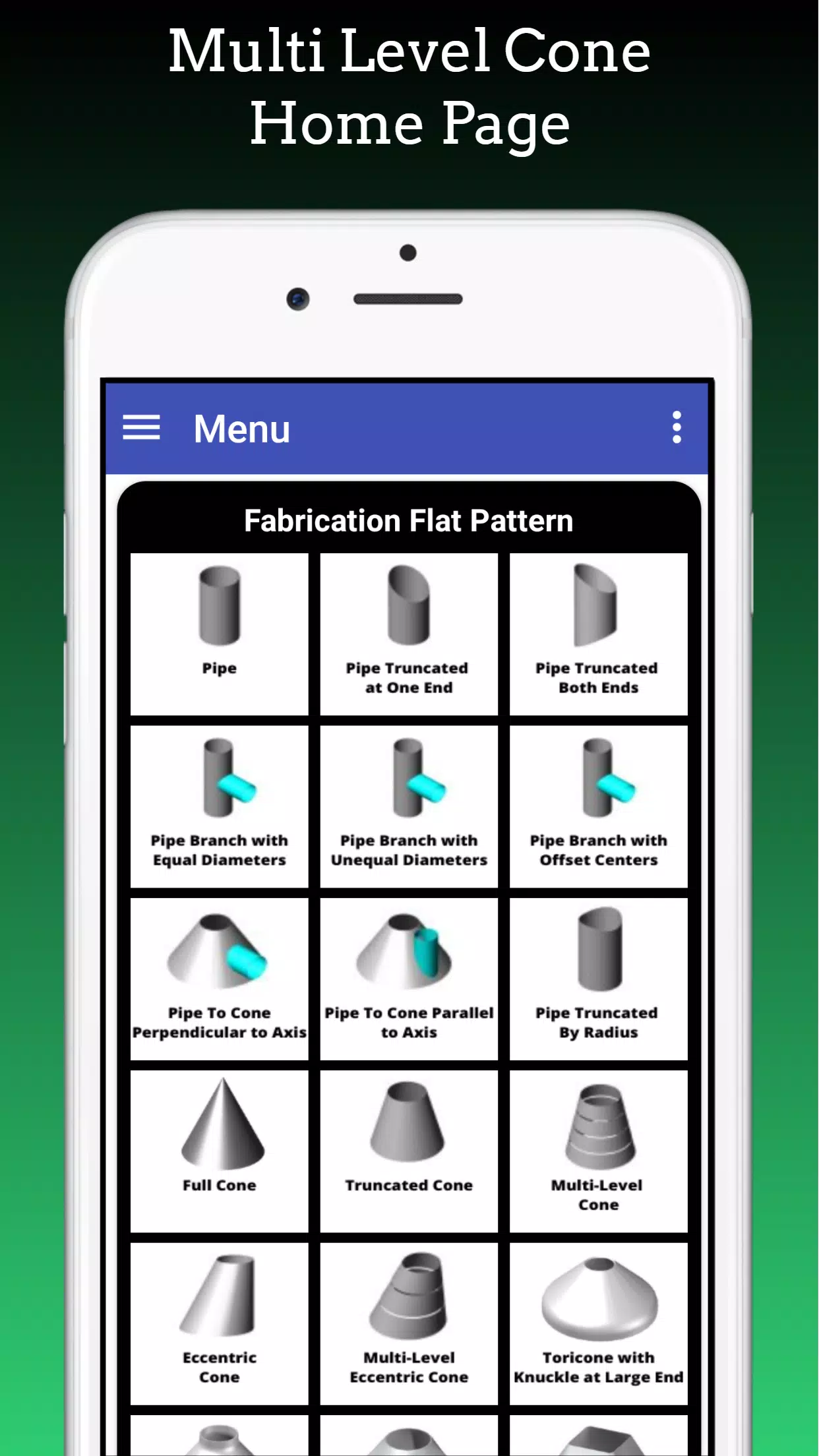

Here's a glimpse into the variety of fabrication flat patterns available in our app:

• Pipe Layout or Shell Layout or Pipe Flat Pattern
• Truncated Pipe Layout or Pipe cut at any angle Flat Pattern
• Truncated Pipe at Both end layout or Pipe cut by an angle on both side Flat Pattern
• Pipe to Pipe Intersection with equal Diameters or Pipe Branch connection Flat Pattern
• Pipe to Pipe Intersection with unequal diameters or Pipe Branch Connection Flat Pattern
• Pipe to Pipe Intersection with offset diameters or Pipe Branch Connection Flat Pattern
• Pipe to Cone intersection at Perpendicular to Axis Flat Pattern
• Pipe to Cone Intersection at Parallel to Axis Flat Pattern
• Pipe Truncated by Radius Flat Pattern
• Full Cone Layout Flat Pattern
• Truncated or Half Cone Layout Flat Pattern

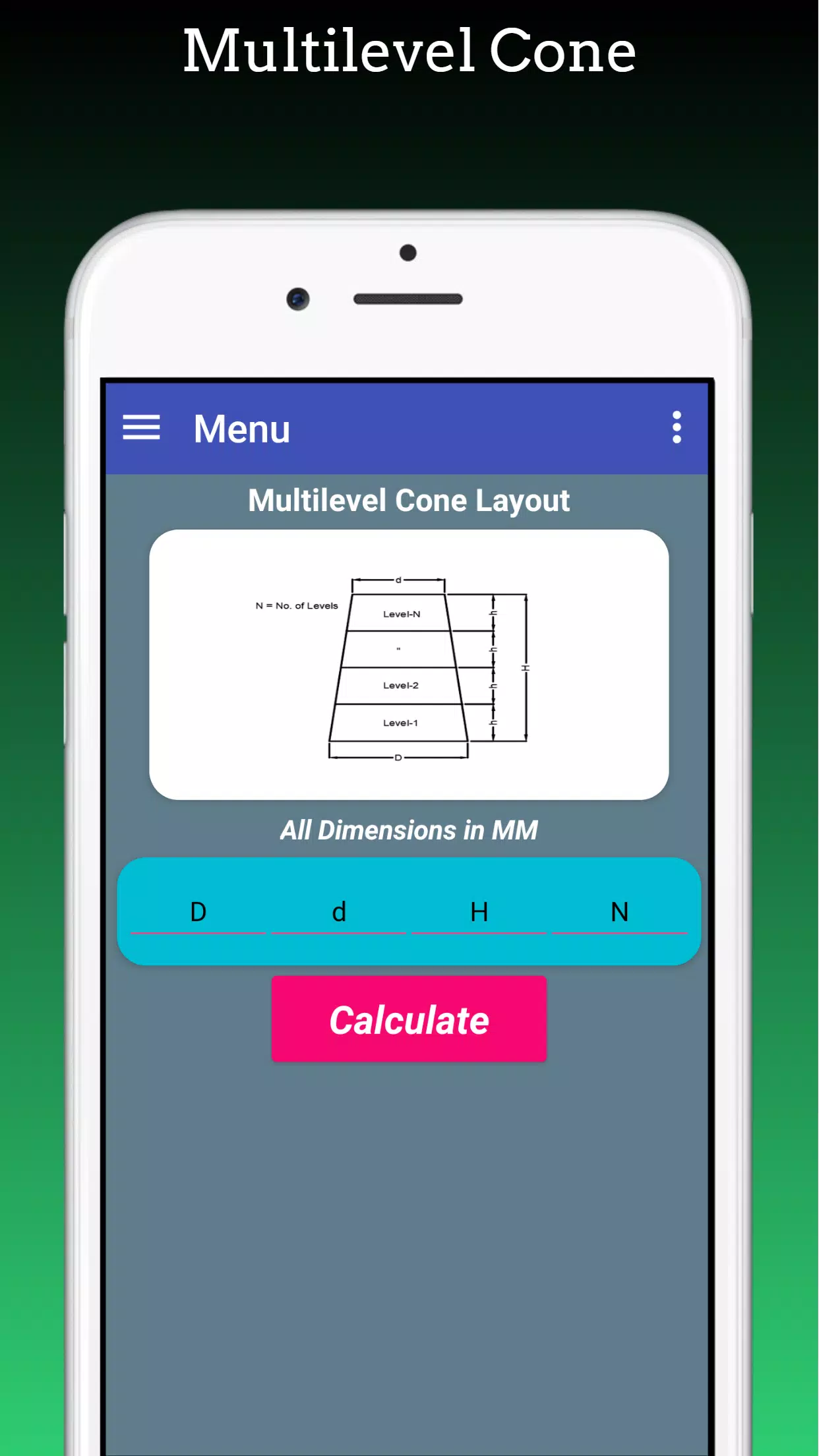

• Multi Level Cone Layout Flat Pattern
• Eccentric Cone Layout Flat Pattern
• Multilevel eccentric cone layouts Flat Pattern
• Tori cone with Knuckle radius at large end Flat Pattern
• Tori cone with Knuckle radius at both ends Flat Pattern

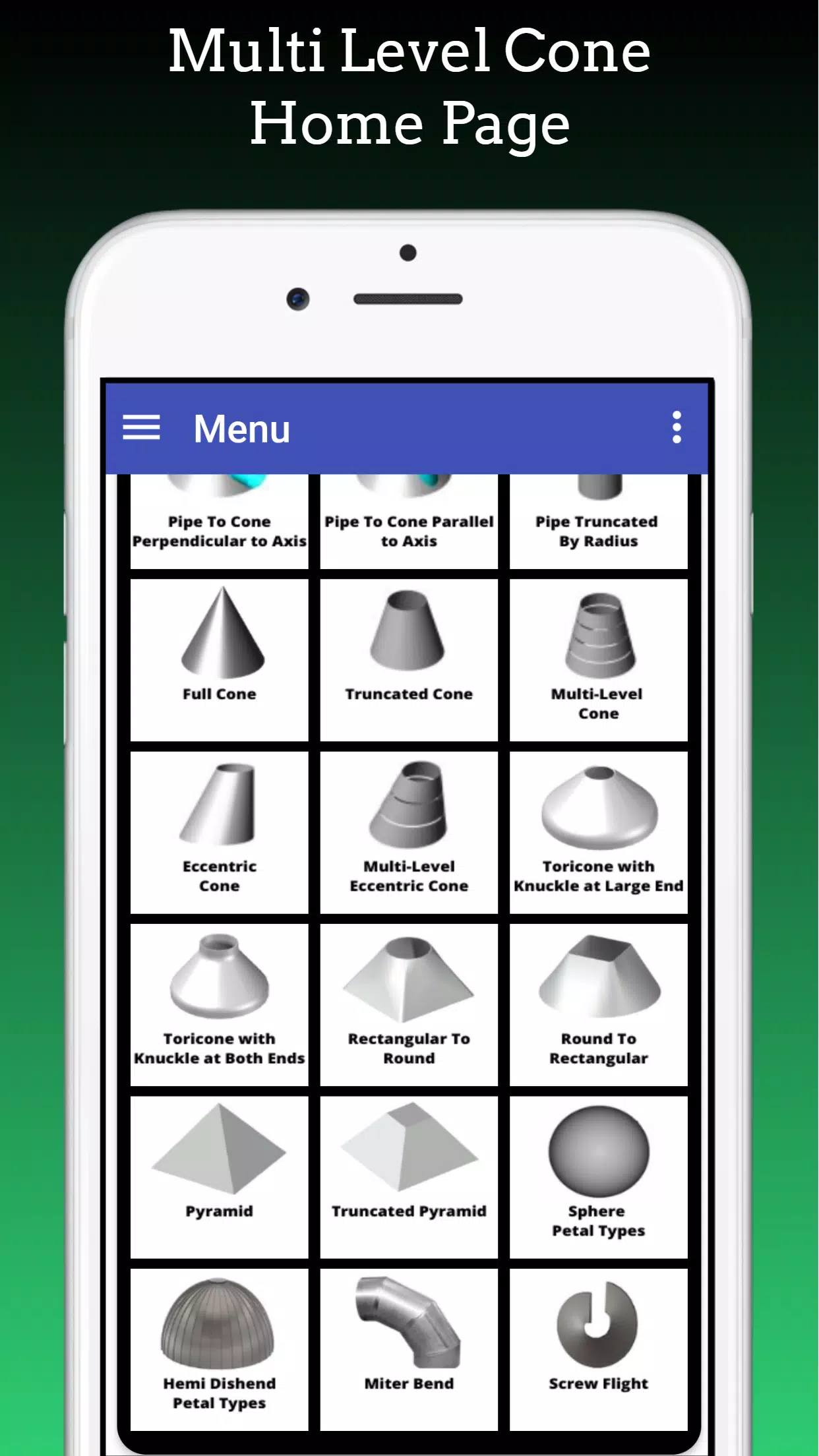

• Rectangle to Round or Square to Round Transition layout Flat Pattern
• Round to Rectangle or Round to Square transition layout Flat Pattern
• Pyramid layout Flat Pattern
• Truncated Pyramid Layout Flat Pattern
• Sphere Petal Layouts Flat Pattern
• Dish End Petal Layouts Flat Pattern
• Miter Bend Layout Flat Pattern
• Screw Flight Layout Flat Pattern

Our application supports a wide range of shapes including cones, shells, pipes, pipe branch connections, full cones, half cones, truncated cones, square to round transitions, round to square transitions, rectangular to round transitions, round to rectangular transitions, pyramids, truncated pyramids, cone to pipe branches, spheres, and dish ends. This makes it an invaluable resource for professionals involved in various fields such as:

• Pressure vessels fabrication
• Process equipment fabrication
• Welding
• Piping
• Insulation
• Ducting
• Heavy equipment fabrication
• Storage tank construction
• Agitators
• Mechanical equipment
• Structures
• Industrial fabrication
• Heat exchangers

This tool is particularly beneficial for production engineers, fabrication engineers, planning engineers, costing and estimating engineers, project engineers, fabrication contractors, supervisors, fitters, and workers. By integrating our app into your workflow, you can achieve higher precision and efficiency in your fabrication projects.
